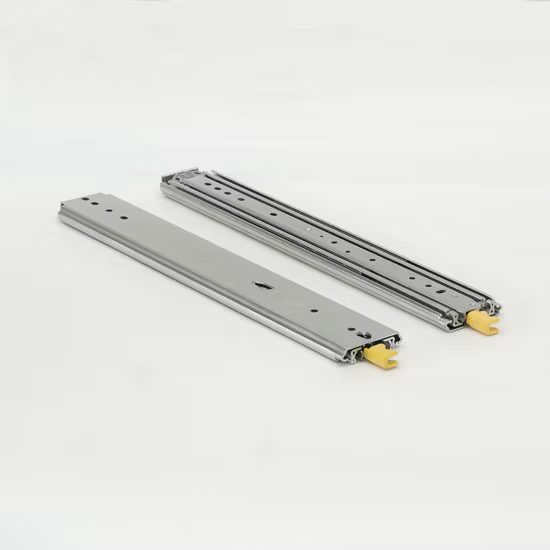

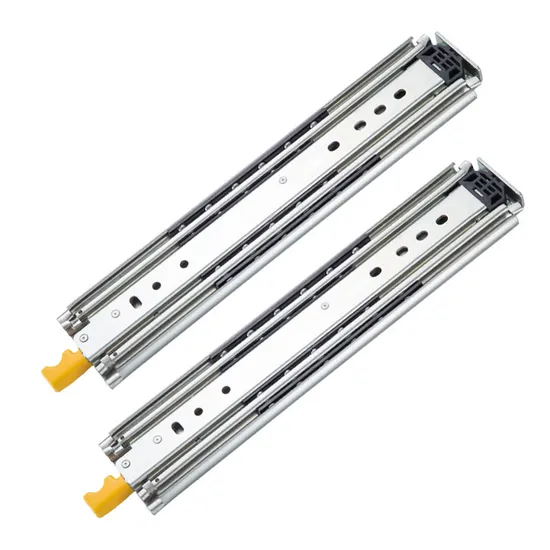

Heavy Duty Slide Rail for Industry Equipments

Basic Info.

Model NO.	7603T
Running Mode	Moving
Feature	Lock-in&Lock-out
Certification	CE, RoHS, ISO 9001:2008
Transport Package	Carton
Specification	12inches-60inches
Trademark	NONE
Origin	China
HS Code	8302420000
Production Capacity	72000 Pairs/Year

Product Description

Product Model:	7603T --- Full Extention Heavy-Duty Slide Rail With Lock Mechanism
Length Range:	12"(305mm) to 60" (1524mm) (increment : 2 inches each)
Height:	76 mm
Side Clearance:	19.2±0.3mm
Load capacity:	227kg(500lbs)/457mm(18")
Materials:	Cold rolled steel
Finish:	ZINC-plated, Or black(Electrophoresis)
Cycle test:	50000 Times
Thickness of Steel:	2.5*2.2*2.5mm
Application:	heavy storage Shelf, tool Trolley(tool box), industry-used drawer, ATM, car refitting, etc.
Features:	Heavy duty load slide, 1:1 full extension, inseparable

warranty	Passed SGS test , free replacement within 1 year.
Customization:	available

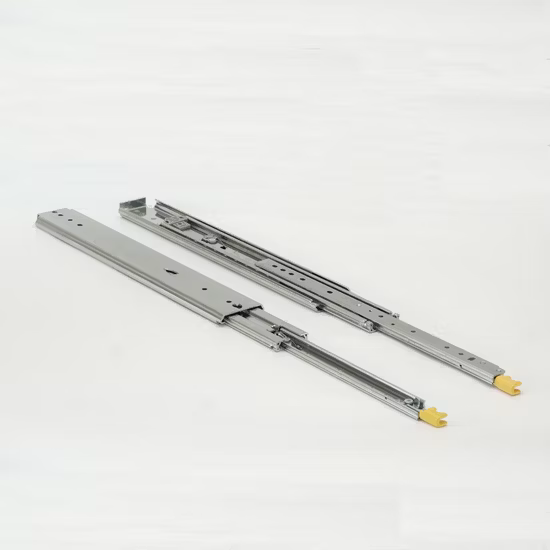

The details of slide rail:

THE CARTIFICATE:

The photoes of workshop

THE TESTING DEVICES:

RFQ;
Q: Are you a trade manufactorer?
A: Yes, we are a manufactorer with our own factory 8800 m³.
Q: What kind of product do you make ?
A: We are making (drawer) slide rail.
Q:How long have you been in this line ?
A: We have specialized in making (drawer) slide rail almost 20 years, we have good experience in this lline of business.
Q:What is this kind of slide rail fit for ?
A: industrial devices need to draw out or extend out, such as machine tool, tool trolley, ATM , computer server....
We have been specialized in producing drawer slide almost 20 years, we have good experience in this line.
The only thing you need to do is to contact us and tell us what you want, then we will work out one-stop solution for you !!!
welcome to contact us at any time !!!
